When it comes to maintaining a comfortable and hygienic indoor environment, few devices can match the effectiveness of KDK air curtains. These unassuming devices play a crucial role in various settings, from restaurants and shopping malls to warehouses and hospitals. Let’s explore what KDK air curtains are, how they work, and the numerous benefits they offer for both commercial and residential spaces.

What is an Air Curtain?

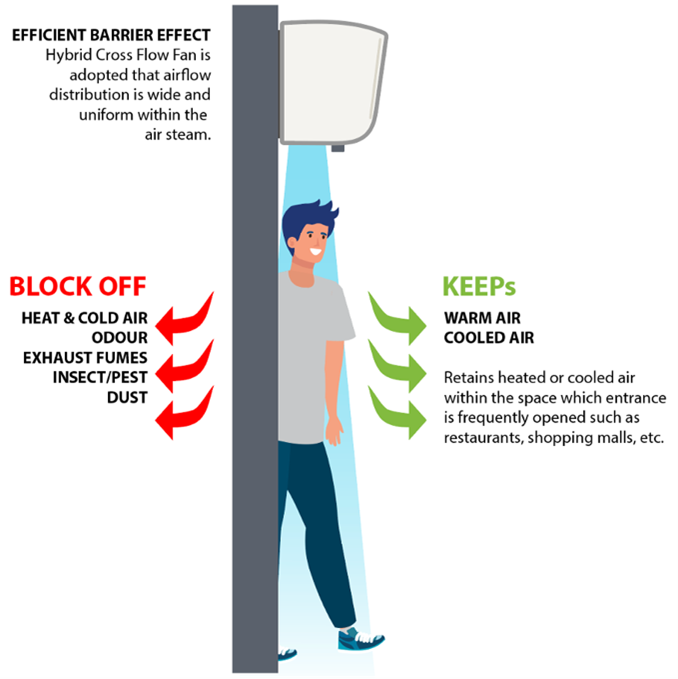

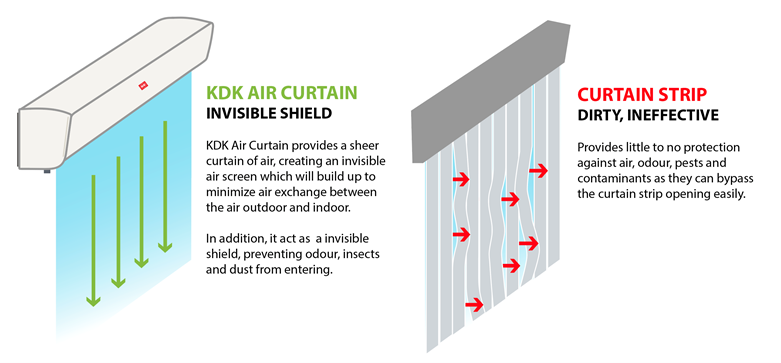

An Air Curtain is a specialized device designed to create an invisible barrier of air across an open doorway or entrance. Its primary purpose is to separate the indoor and outdoor environment, preventing the exchange of air, temperature, and contaminants. Imagine it as an invisible shield that helps maintain a comfortable indoor climate while keeping dust, insects, and pollutants at bay.

How does it work?

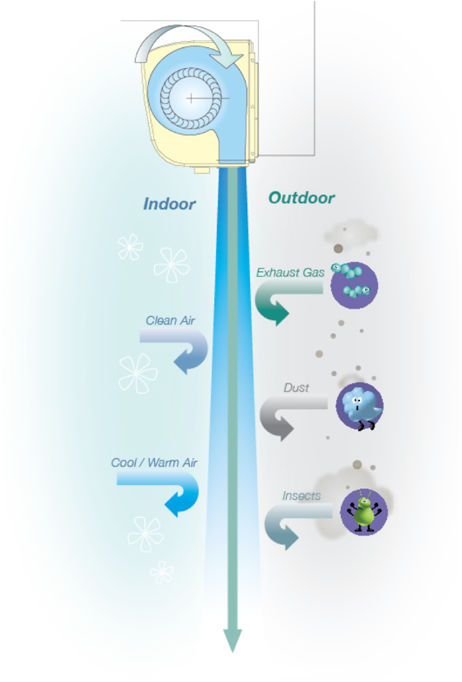

KDK Air Curtains work on a simple yet ingenious principle: they blow a high-velocity stream of air horizontally across an opening. This constant flow of air creates a barrier that effectively separates two different environments. Airflow Generation: The air curtain unit contains a powerful fan that draws in air from the surrounding environment. Air Velocity: The drawn-in air is accelerated and forced through a narrow nozzle or vent, increasing its velocity. Air Barrier: The high-velocity air is then discharged across the doorway or entrance, creating an invisible air barrier that prevents outdoor air from entering and indoor air from escaping.

Why do you need an Air Curtain?

An Air Curtain is placed above a front entrance where there is a high human traffic entering in and out (from an air-conditioned environment to a non-air-conditioned environment or vice versa) Due to high human traffic, such entrances are subjected to opening and closing on a frequent basis. This allows cold air to leak into the outside environment thereby increasing the energy consumption of the air conditioning units. By using an air curtain, it helps creates an invisible air screen which minimises such air exchanges thereby lowering your energy consumption and helping in protecting our environment.

Benefits of KDK Air Curtains

Now that we understand how KDK air curtains work let's delve into the benefits they offer:

Energy Efficiency

KDK air curtains help reduce energy consumption, lower maintenance costs, and improve HVAC system efficiency by preventing the loss of heated or conditioned indoor air which can result in significant long-term cost savings. This makes them a cost-effective solution for maintaining comfortable indoor temperature.

Insect and Pest Control
By creating a barrier of air, KDK air curtains effectively keep out unwanted guests like flies, mosquitoes, and rodents, ensuring a pest-free environment.

Improved Indoor Air Quality
These air curtains act as a filter, preventing outdoor pollutants, dust, and contaminants from entering your space, leading to better indoor air quality.

Enhanced Comfort
In places where doors are frequently opened and closed, such as restaurants or retail stores, KDK air curtains ensure a consistent indoor climate, keeping customers and staff comfortable.

Applications of KDK Air Curtains

KDK air curtains find applications in a wide range of settings:

Commercial Spaces: Restaurants, shopping malls, supermarkets, and warehouses benefit from KDK air curtains by keeping customer areas comfortable and contaminant-free.

Healthcare Facilities: Hospitals and clinics use air curtains to maintain a sterile environment in operating rooms and isolation areas.

Industrial Facilities: Factories and manufacturing plants utilize KDK air curtains to prevent dust and fumes from entering cleanrooms or controlled environments.

Residential Spaces: Some homeowners install KDK air curtains at exterior doorways to enhance indoor comfort and minimize energy wastage.

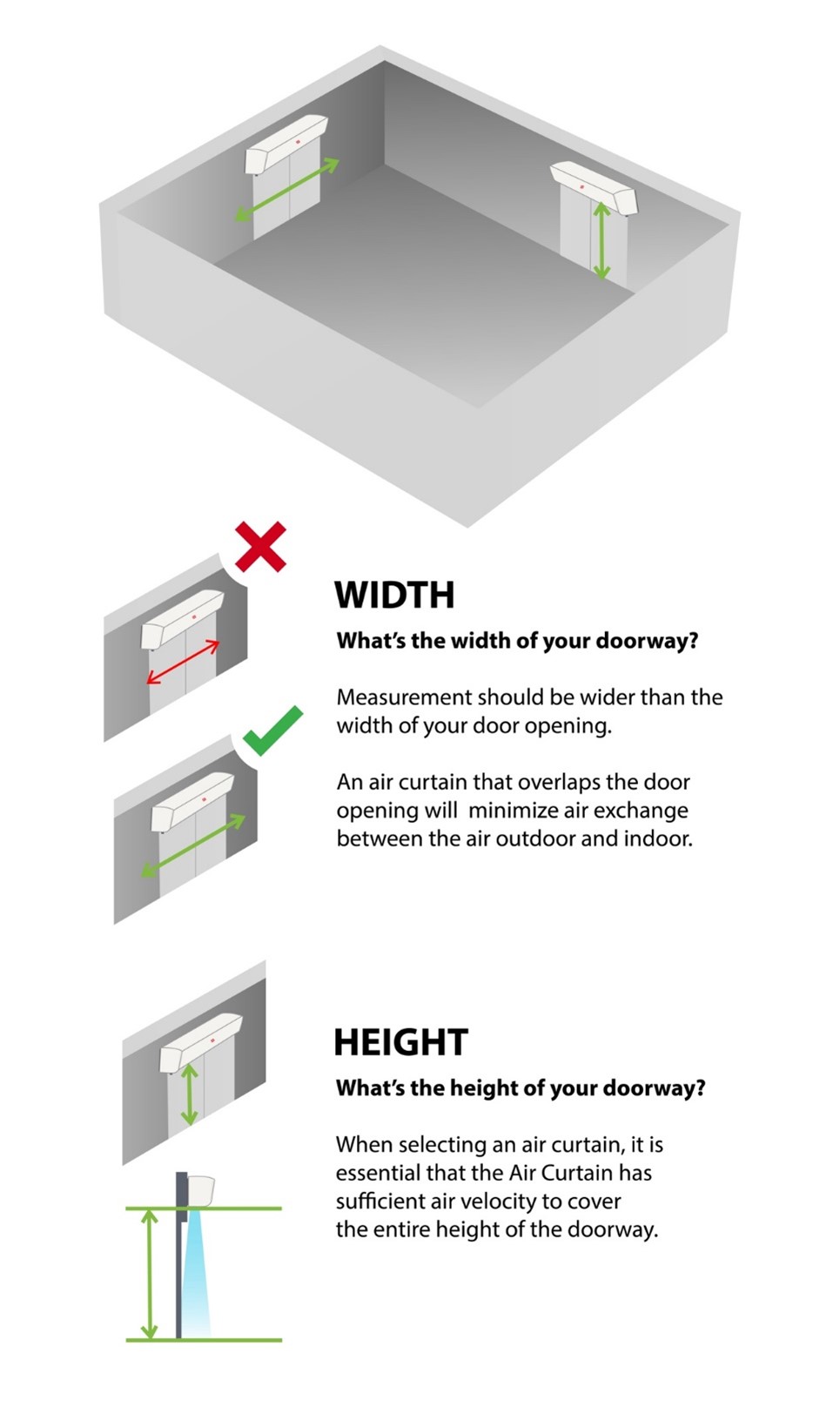

How to choose the right size?

Last but not least, with so many sizes, choosing the right air curtain can be difficult to work out the best option for your area.

To help you along this journey, we’ve written a short introduction and guide on how to choose the right size of air curtain for you.

The size of the air curtain should match the width and height of the door, and the unit should be mounted at a height that creates an effective barrier

Width
Firstly, measure the width of the door which the distance from the left to the right of the door as to choose an appropriate length of the air curtain. It will lose effectiveness if the air curtain is shorter than the door as some areas cannot be covered by the windblown. Generally, our air curtains have the following different lengths: 900mm, 1200mm and 1500mm.

Efficient Distance (Height of coverage required)
According to the principle of air speed attenuation, as the air outlet distance increases, the air speed decreases. Mounting height is a key consideration when selecting an air curtain. To provide an effective barrier, it is essential that the unit has sufficient air velocity to cover the entire height and width of the doorway.


Product lineup



Efficient Distance

Width

2.5m

3m

3.5m

4m

900mm

2509UA

3009UA

3509UA

4009UA

1200mm

2512UA

3012UA

3512UA

4012UA

1500mm

2515UA

3015UA

3515UA

4015UA



KDK air curtains are the unsung heroes of indoor comfort and hygiene. These unassuming devices work silently in the background, keeping our spaces comfortable and free from unwanted intruders. With benefits ranging from energy savings to improved indoor air quality, KDK air curtains are an essential addition to any space where climate control and cleanliness matter. Whether it's a bustling restaurant or a cozy home, KDK air curtains play a vital role in keeping the good things in and the bad things out.

Q&A

  1. What is the noise level of KDK air curtains during operation?

    KDK air curtains are designed to operate quietly, ensuring minimal disruption to your indoor environment.

  2. How do I properly install and set up my KDK air curtain?

    KDK Singapore provides installation services and comprehensive instructions for DIY installation to ensure your air curtain is set up correctly.

  3. What maintenance is required for my KDK air curtain, and how often should it be performed?

    Regular maintenance is essential. Refer to the provided maintenance guide or schedule a service with KDK Singapore to keep your air curtain running efficiently.

  4. Is professional installation required for KDK air curtains?

    While KDK air curtains are designed for easy installation, professional installation by KDK technicians is recommended to ensure optimal performance and safety.

  5. Is my KDK air curtain covered by a warranty, and what does it cover?

    KDK Singapore provides a 12 months warranty for your air curtain, covering various components.
